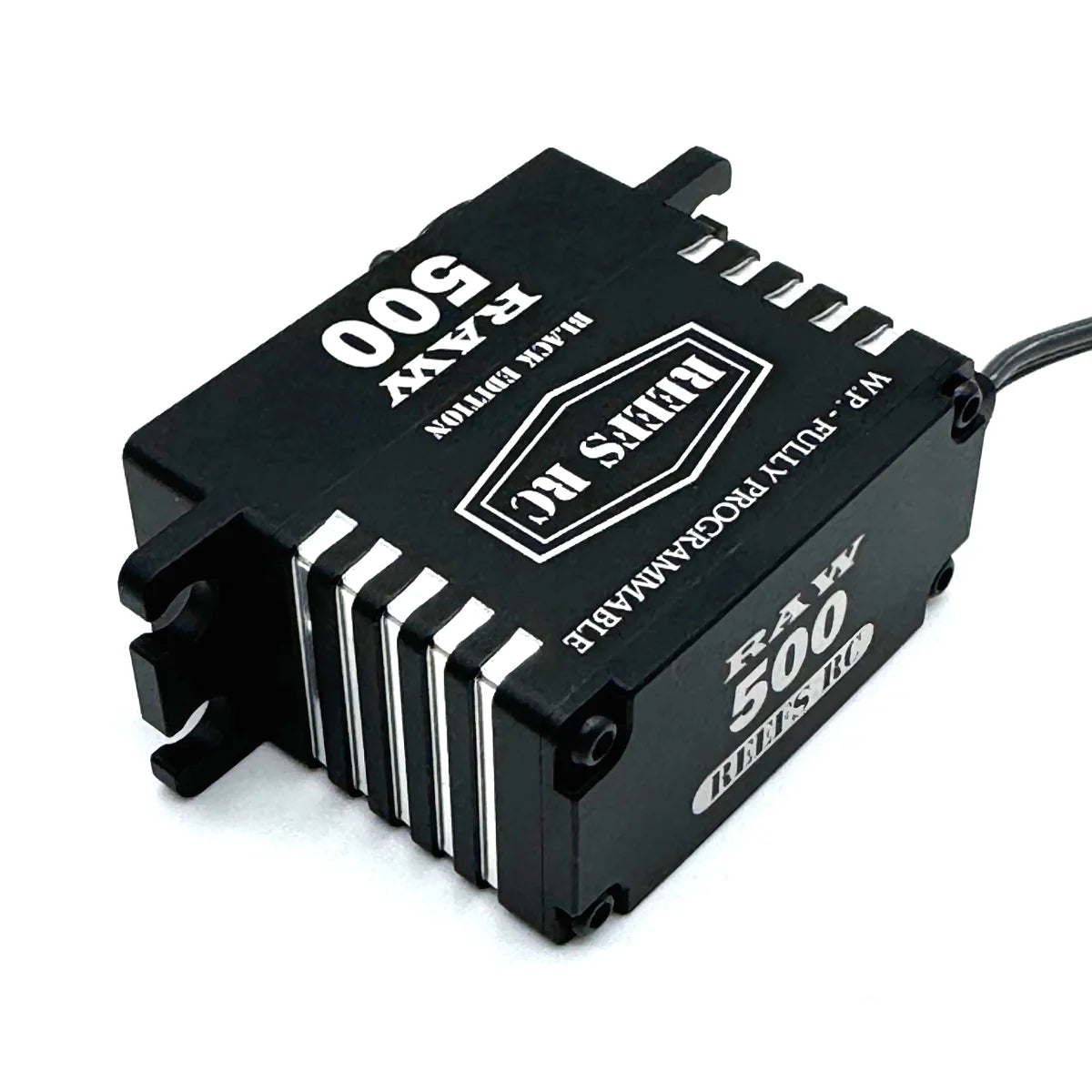

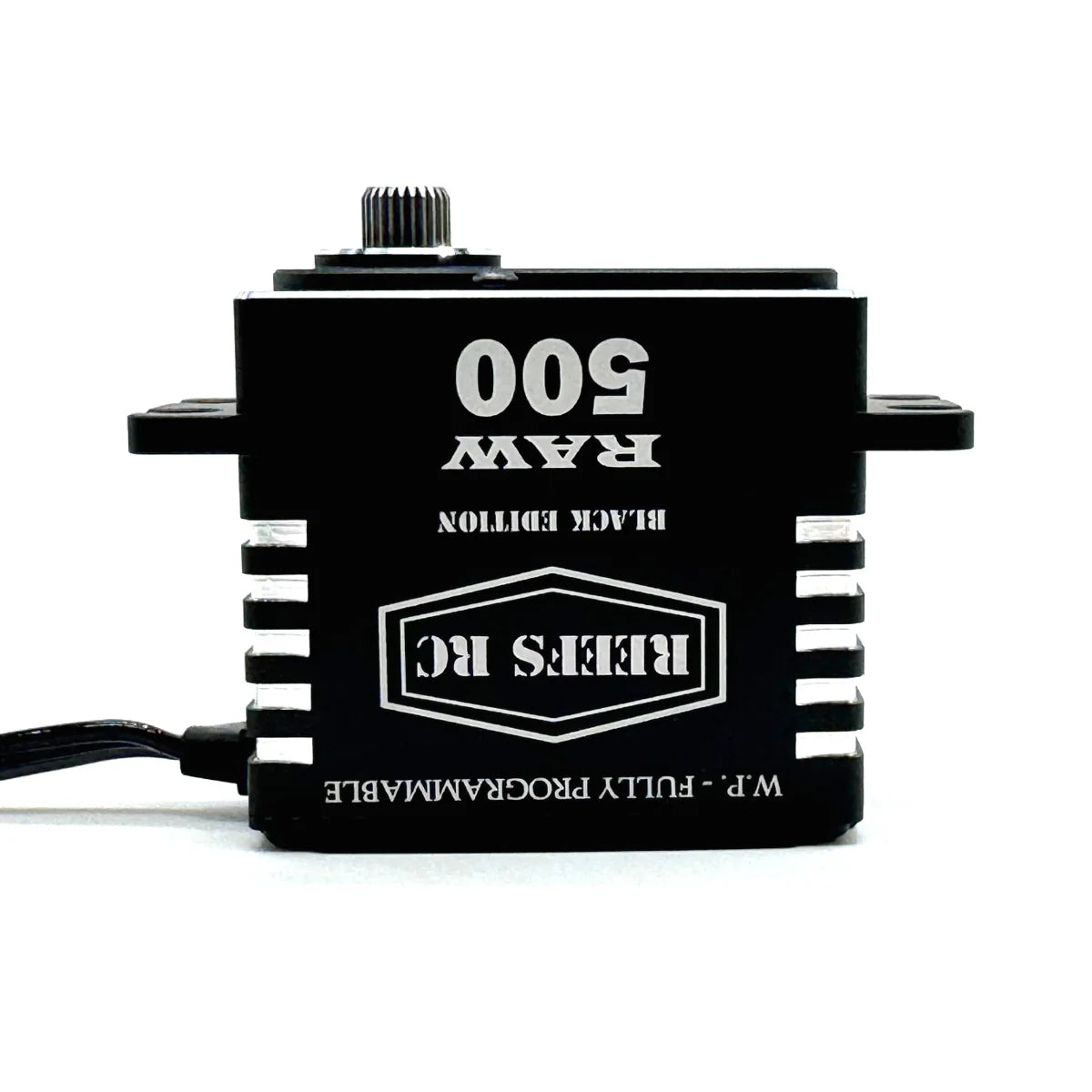

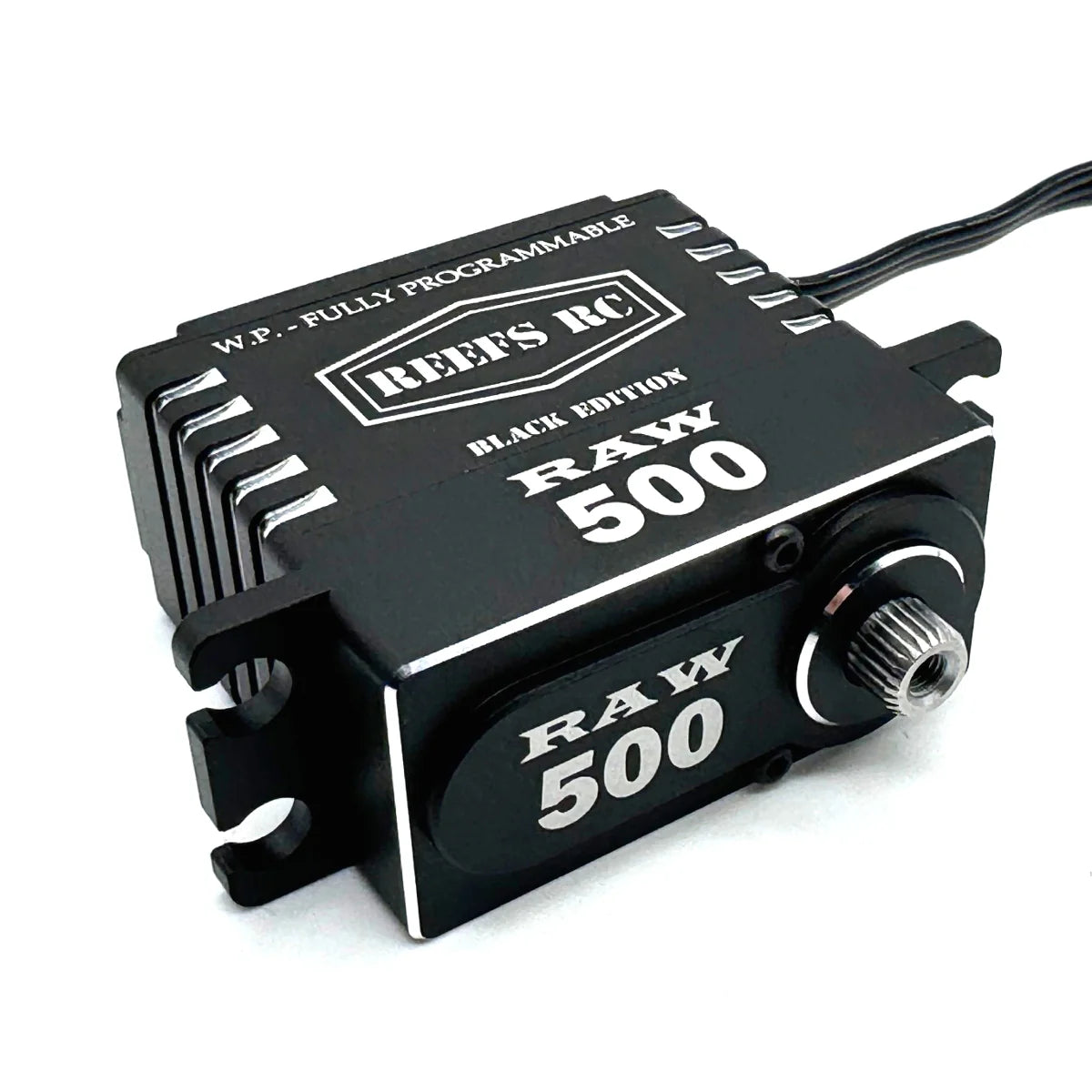

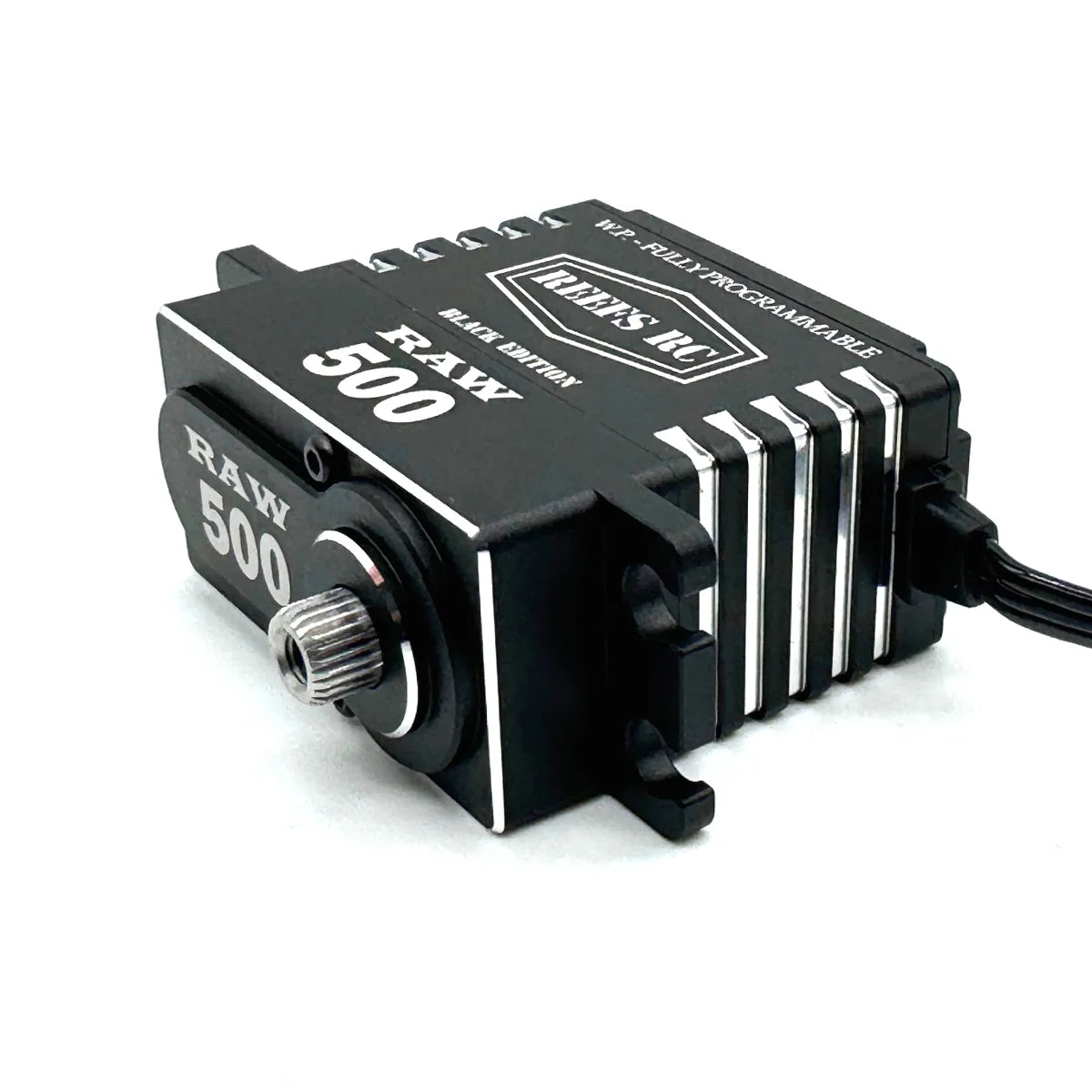

Reefs RC RAW500 HD Brushless Servo 40kg (BLACK EDITION)
Reefs RC RAW500 HD Brushless Servo 40kg (BLACK EDITION)
Regular price
£139.99 GBP
Regular price
Sale price
£139.99 GBP
Unit price
per
Tax included.
Couldn't load pickup availability
Reefs RC RAW500 HD Brushless Servo BLACK EDITION
The servo that changed the game. The RAW500 is a powerhouse of a servo that has proven itself time and time again. There's a reason it's our most recommended servo.
SPECIFICATIONS:
- SUBMARINE WATERPROOF: 7 Point Seals
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- Fully Programmable w/ REEFS Software (REEFS USB LINK required)
- Voltage: 4.8V - 8.4V
- Internal: Steel Gears / All CNC Aluminum REEFS Case
- Bearing Type: 2 Ball Bearings / Weight: 2.75oz
- Dimensions: 1.57 x .79 x 1.5 (LWH)
- Torque: 450oz @ 6v/ 500oz @7.4v/ 565oz @8.4v
- Speed: .11sec @6v/.095sec @7.4v/.08sec @8.4v
- Spline: 25T
- Dead Band Width: 2¦Ìs
- BEC Not Required (Recommended for best performance)
- 32kg @ 6v
- 36kg @ 7.4v
- 40kg @ 8.4v
For programming, the USB Link is required.
