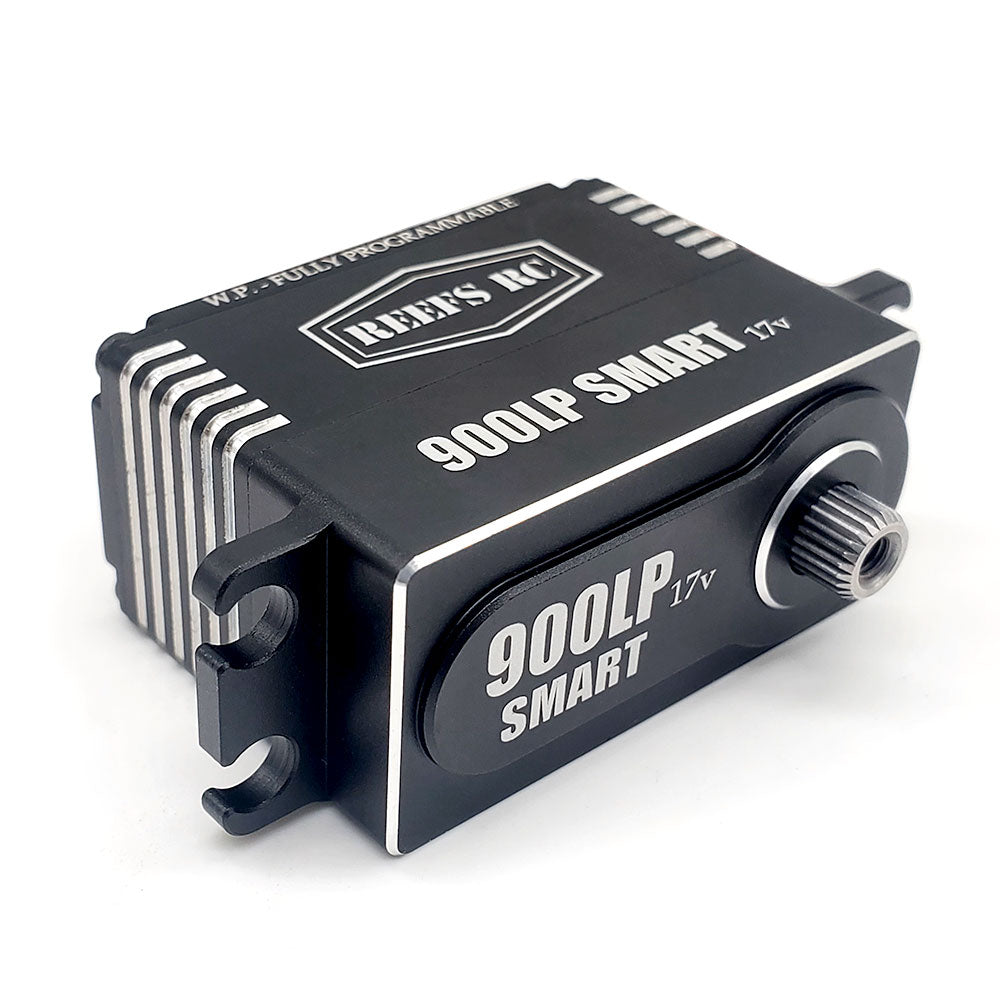

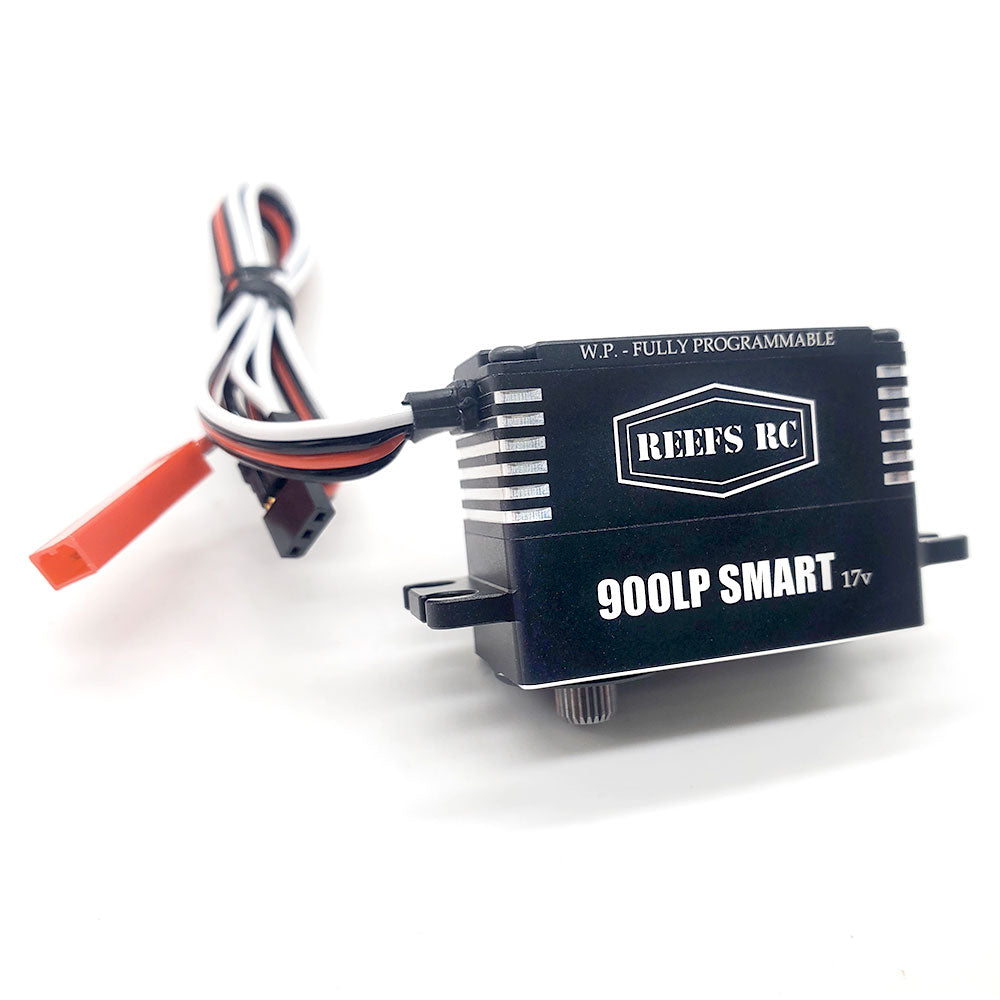

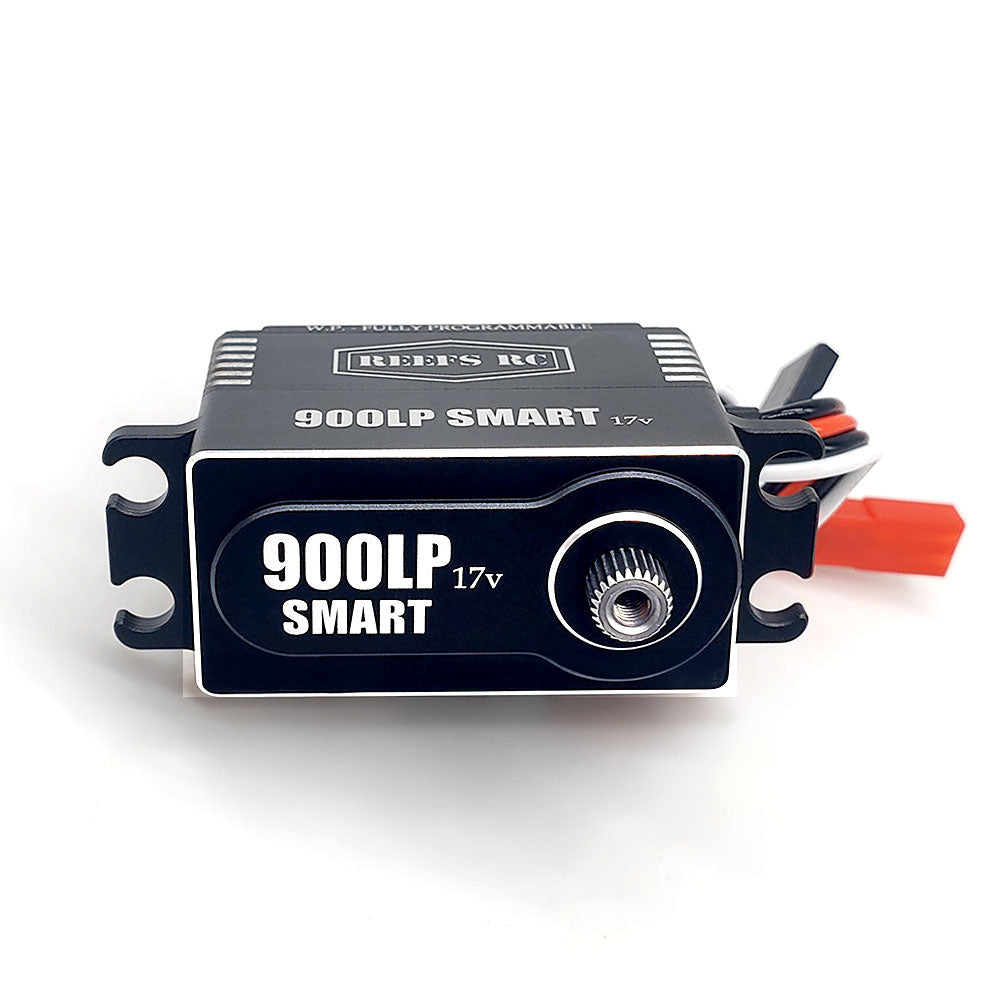

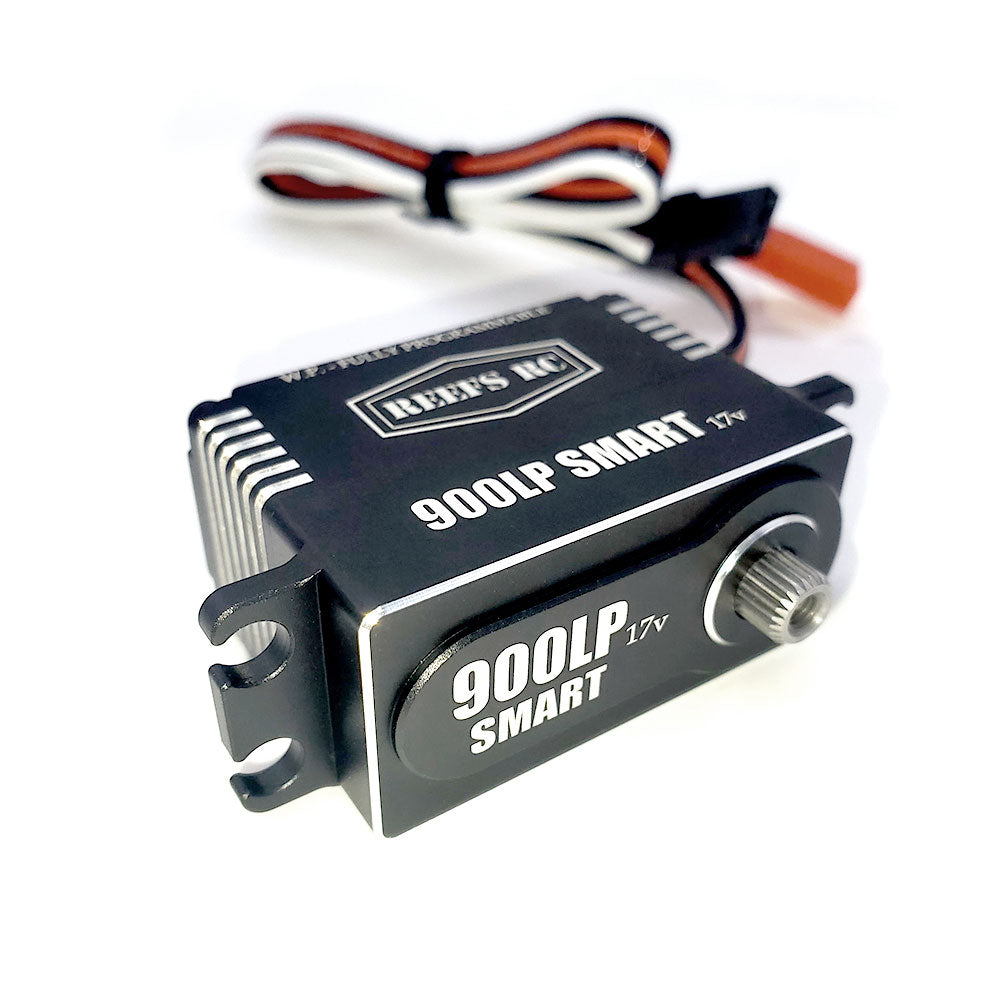

900LP Smart 3S/4S Servo/Winch - Servo/Winch (Direct Power) 63kg

900LP Smart 3S/4S Servo/Winch - Servo/Winch (Direct Power) 63kg

£179.99 GBP
£179.99 GBP
Sale Sold out
Tax included.

Before adding that Reef 900LP Servo to your cart, check out Exocages' video on YouTube is definitely a smart move. You’ll get a clearer idea of all the components and steps involved, plus ensure you're fully prepared to make the most of the direct-powered servos.

WARNING!!: Does not work with Rhino ESC Systems!  We recommend Holmes ESCs.

MUST USE / REQUIRES "true"+1200mah +100C battery or more, with an external Zener Diode (included).

The 900LP SMART brushless servo really has it all!   Low-Profile for a smaller footprint and lighter weight, a huge amount of power, capable of up to 17V, awesome speeds all while boasting SMART Programming!

Ready to utilize for your next setup!

This thing is insane!

NOTE: NOT RECOMMENDED TO USE WITH RHINO ELECTRONICS

SPECIFICATIONS:

  • High Torque High Speed Brushless SERVO or WINCH
  • SMART - Comes as SERVO out of the Box. Easily switch to the preprogrammed WINCH Controller mode with the REEFS LINK*
  • SUBMARINE WATERPROOF: 7 Point Seals
  • Military Grade Construction
  • Internal Steel Gears / All CNC Aluminum Casing
  • 4-Pole Brushless Motor
  • Magnetic Angle Sensor
  • Pulse Width Modulation Control
  • Bearing Type: 2 Ball Bearings / Weight: 2.3oz / 66g
  • Voltage: 10V-17V
  • Torque: 710oz (53kg)@12.6v / 810oz (59kg)@14.4v / 920oz (63kg)@16.8v
  • Speed: .10sec @12.6v / .09sec @14.4v / .08sec @16.8v
  • Dimension: 1.6 x .79 x 1.16 (LWH) / 48mm x 20.2mm x 29.5mm
  • Spline: 25T
  • Dead Band Width: 2μs
  • FULLY PROGRAMMABLE with BUILT IN PREPROGRAMMED WINCH CONTROLLER (the USB Link is required to switch servo to winch mode)

Unload Current:

320mA@10.0V
 380mA@11.1V
 480mA@12.6V
 530mA@14.4V
 630mA@16.8V

Load Current:

4300mA@10.0V
 4800mA@11.1V
 5800mA@12.6V
 6500mA@14.4V
 7500mA@16.8V

NB: ONLY PROGRAMMABLE WITH A v2 (NOT v1) PROGRAMMER
