Reefs RC 900 Smart Brushless Servo 67kg

Reefs RC 900 Smart Brushless Servo

SPECIFICATIONS:

 High Torque High Speed Brushless SERVO or WINCH

- Comes as SERVO out of the Box, can be changed to WINCH with the REEFS LINK and Software.

- BUILT IN PREPROGRAMMED WINCH CONTROLLER

- SUBMARINE WATERPROOF: 7 Point Seals w/ GRAY HEAT SINK

- Magnetic Angle Sensor

- Pulse Width Modulation Control

- 4 Pole Brushless Motor

- REEFS LINK required for Programming

- Voltage 4.8V - 8.4V

- Internal: Steel Gears / All CNC Aluminum Casing

- Bearing Type: 4 Ball Bearings / Weight: 2.99oz

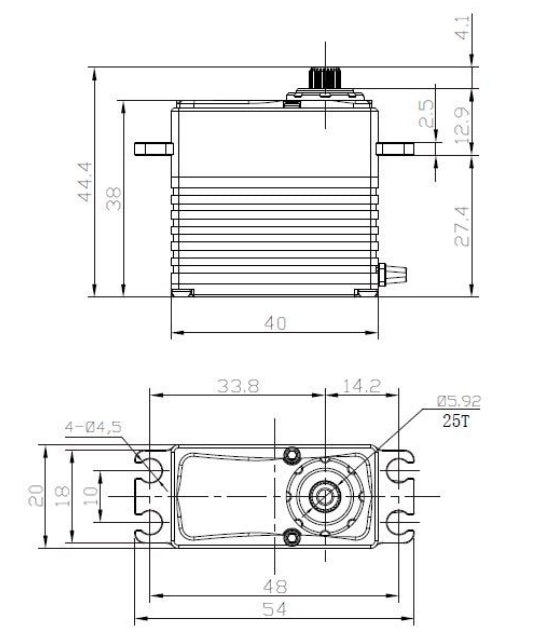

- Dimension: 1.57 x .79 x 1.5 (LWH)

• Torque: 720oz @ 6v/ 830oz @7.4v/ 940oz @8.4v
• 51.84kg@ 6v/ 59.76kg@7.4v/ 67.68kg@8.4v

- Speed: .13sec @6v/.12sec @7.4v/.10sec @8.4v

- Spline: 25T / Dead Band Width: 2¦Ìs

- BEC Not Req. Recommended for max performance

Unload Current: 460mA @ 4.8V / 500mA @ 6.0V / 540mA @ 7.4V / 580mA @ 8.4V

Load Current: 5000mA @ 4.8V / 5800mA @ 6.0V / 6800mA @ 7.4V / 7400mA @ 8.4V

For programming, the USB Link is required.
