55Micro Fully Programmable Servo 3.96kg

For:
TRAXXAS® TRX-4™ TRAXXAS® TRX-4M™
- Direct-Fit drop-in upgrade for TRAXXAS® TRX-4™, TRAXXAS® TRX-4M™ or anywhere a #2065 sub-micro servo might be utilized
- Standard size 25T Spline
- Military grade construction
- IP67 Waterproof
- High-efficiency Pulse Width Modulation Control

Description:
55 Micro Servo - Fully Programmable
Sub Micro Servo
Digital Servo
Waterproof
Pulse Width Modulation Control
Travel: 180
Angle: No limit

Voltage 4.8 - 8.4
Internal: Metal Gears
CNC Aluminum Casing
Bearing Type: 2BB
Temp Rate: -15C°~ +70C
Weight: .67oz / 19g

• 2.95kg @ 6.0v
• 3.45kg @ 7.4v
• 3.96kg@ 8.4v

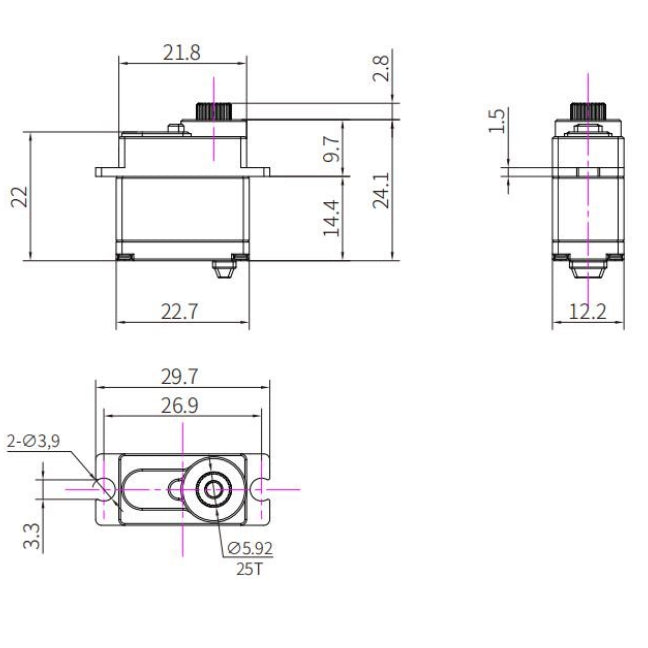

Dimension: (LWH)
.90 x .50 x .86 in
22.9 x 12.8 x 22 mm

Torque: 41oz @ 6.0v
48oz @ 7.4v
55oz @ 8.4v

Speed: .11sec @ 6.0v
.09sec @ 7.4v
.08sec @ 8.4v

Spline: 25T Standard
Dead Band Width: 3¦Ìs
BEC Not Required
