49Sub Micro Servo - 3.5kg @ 8.4v

49SubMicro Tabs are recommended for multi use installs.

High Torque High Speed
Servo / Winch
Military Grade Construction
Pulse Width Modulation Control
SMART Chip Technology
REEFS LINK required for Programming
(Optional) Comes as Servo

Voltage 4.8v - 8.4v
Internal: Metal Gears
CNC Aluminum Casing
Sealed Bearing
Temp Rate: -15C°~ +70C
Operating Travel: 180°±10°
Mechanical Angle: No Limit
Motor Drive: IC Drive
Weight: .24oz / 7g

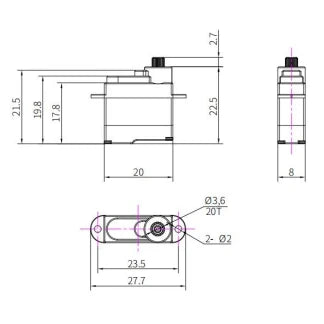

20 x 8 x 17.8 mm (LWH)

Torque: 37oz @ 6.0v
              43oz @ 7.4v
             49oz @ 8.4v

Speed: .075 sec @ 6.0v
             .058 sec @ 7.4v
             .05 sec @ 8.4v

Spline: 20Tφ4.0mm
Dead Band Width: 2¦Ìs
BEC Not Required,
Recommended for Max Perf.

- REEFS207
