Reefs 422HDv2 Servo Winch 34kg

Reefs 422HDv2 Servo Winch

• FULLY PROGRAMMABLE
• BUILT IN PREPROGRAMMED WINCH CONTROLLER
• High Torque Digital Coreless Servo
• SUBMARINE WATERPROOF: 7 Point Seals
• 7075 CNC SPOOL w/ Clear Finish
• 7’ Silicone Coated Steel Braided Line,
• w/ Scale Recovery Hook
• Magnetic Angle Sensor / Voltage 4.8V - 8.4V
• Fully Programmable w/ REEFS Software
• REEFS LINK required for Programming
• Internal: Steel Gears / CNC Aluminum Casing
• Bearing Type: 3 Ball Bearings / Weight: 2.85oz

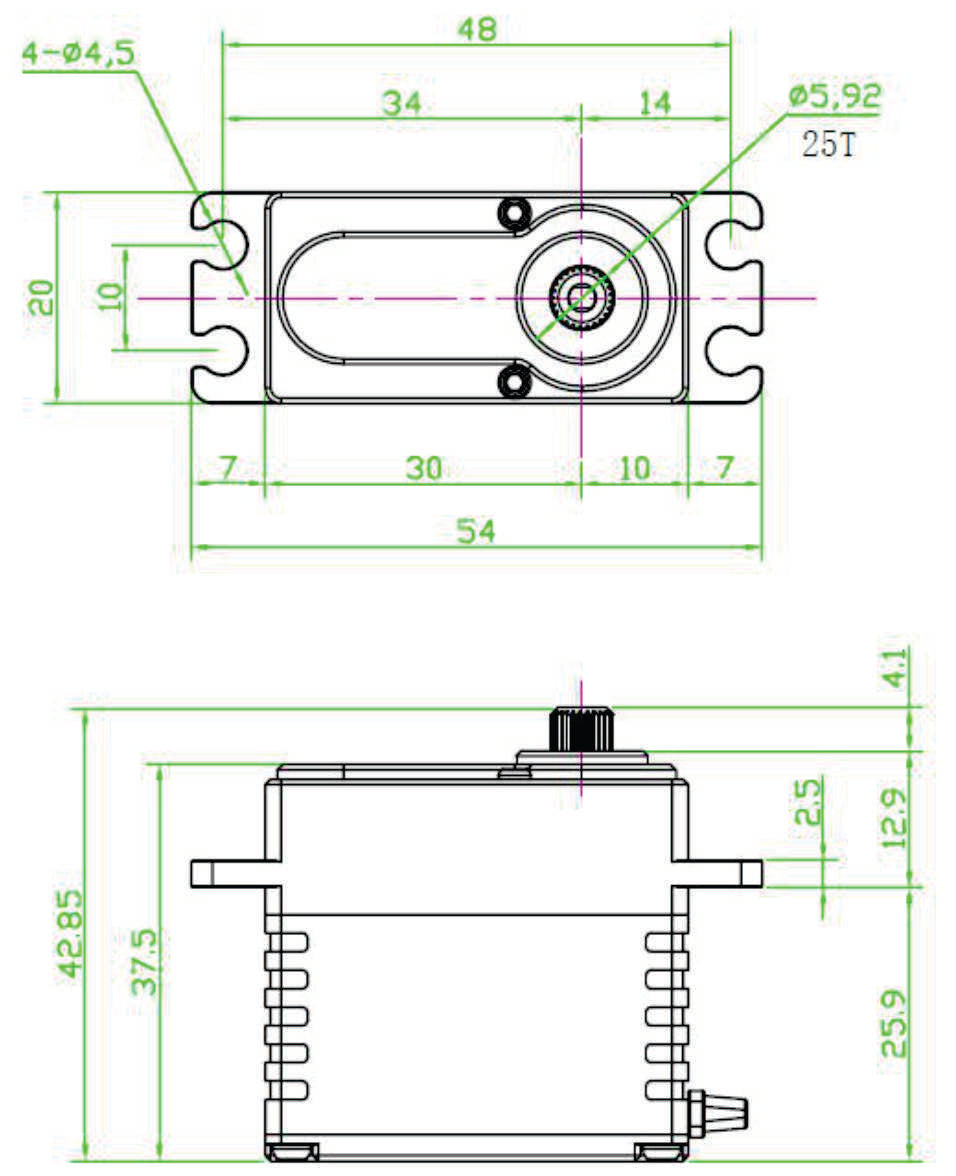

• Dimension: 1.57 x .78 x 1.5 (LWH)
• Torque: 405oz @ 6v/ 450oz @7.4v/ 480oz @8.4v
• Speed: .11sec @6v/.10sec @7.4v/.09sec @8.4v
• Spline: 25T / Dead Band Width: 2¦Ìs
• BEC Not Req. Recommended for max performance

• 29.16kg @ 6v
• 32.40kg @ 7.4v
• 34.56kg @ 8.4v

For programming, the USB Link is required.
