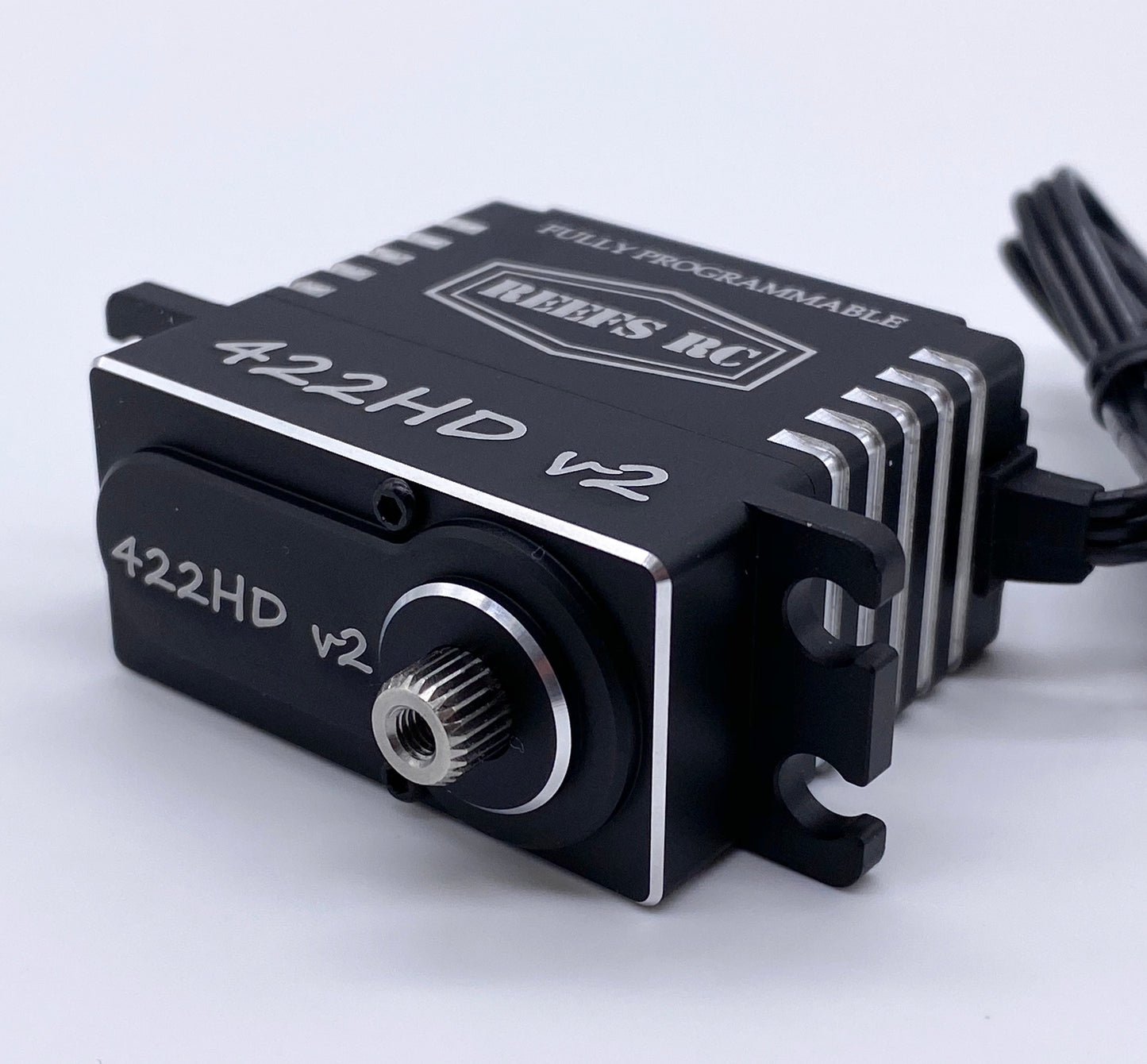

Reefs 422HD V2 Servo 31kg

• High Torque Digital Coreless Servo
• SUBMARINE WATERPROOF: 7 Point Seals
• Magnetic Angle Sensor
• Pulse Width Modulation Control
• Fully Programmable w/ REEFS Software (REEFS LINK required)
• Voltage: 4.8V - 8.4V
• Internal: Steel Gears / All CNC Aluminum Casing
• Bearing Type: 3 Ball Bearings / Weight: 2.85oz
• Dimensions: 1.57 x .78 x 1.5 (LWH)
• Torque: 360oz @ 6v/ 400oz @7.4v/ 434oz @8.4v
• Speed: .13sec @6v/.11sec @7.4v/.10sec @8.4v
• Spline: 25T
• Dead Band Width: 2¦Ìs
• BEC Not Required (Recommended for best performance)

• 25.92kg @ 6v
• 28.80kg @ 7.4v
• 31.25kg @ 8.4v

For programming, the USB Link is required.
