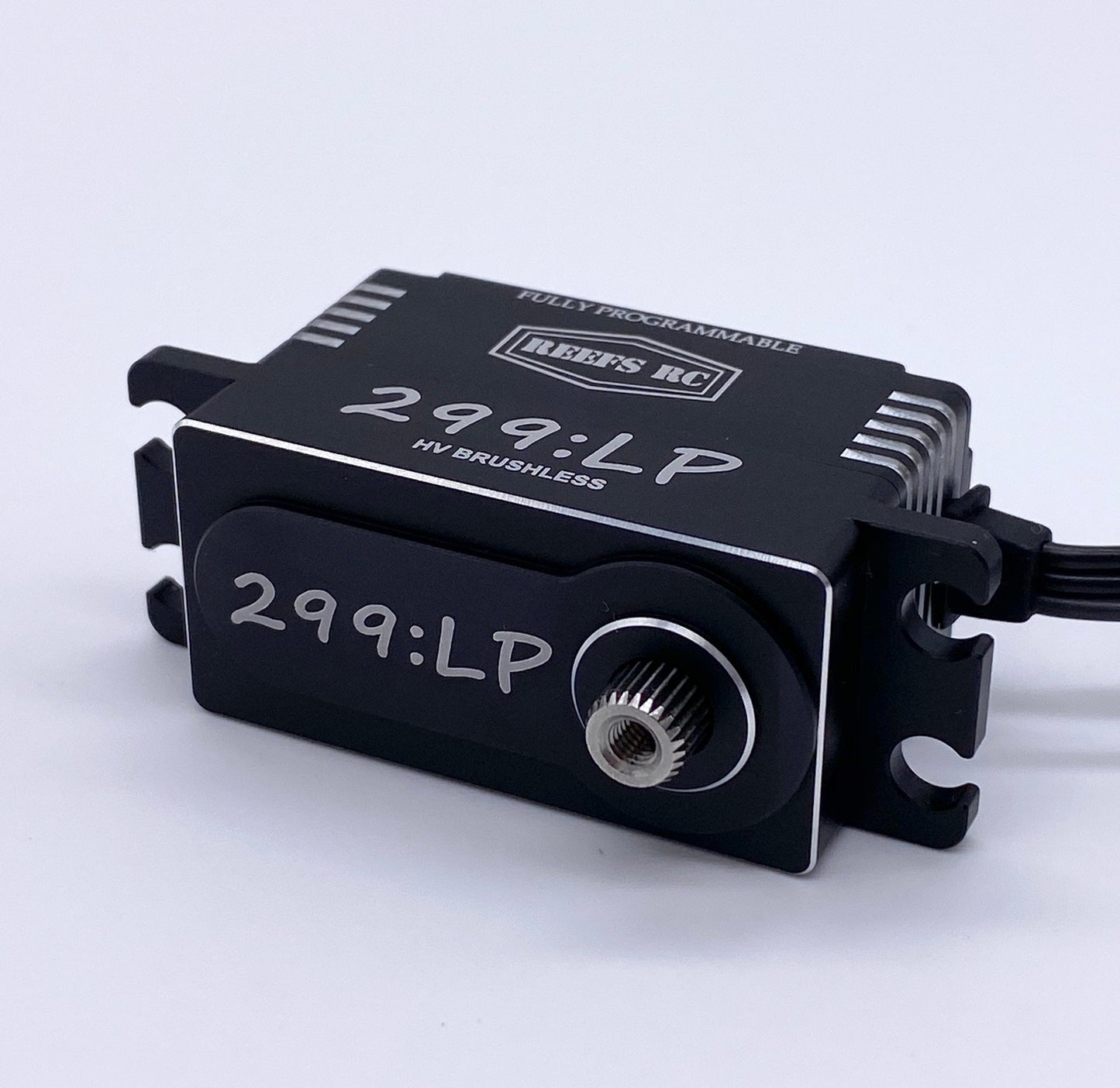

Reefs 299:LP Low Profile Racing Servo 22.5kg

• High Torque High Speed Brushless Motor
• Water Resistant
• Magnetic Angle Sensor
• Pulse Width Modulation Control
• Fully Programmable w/ REEFS Software (REEFS LINK required for Programming)
• Voltage: 4.8V - 8.4V
• Internal: Steel Gears / All CNC Aluminum Casing
• Bearing Type: 2 Ball Bearings / Weight: 2.0oz / 57.2g

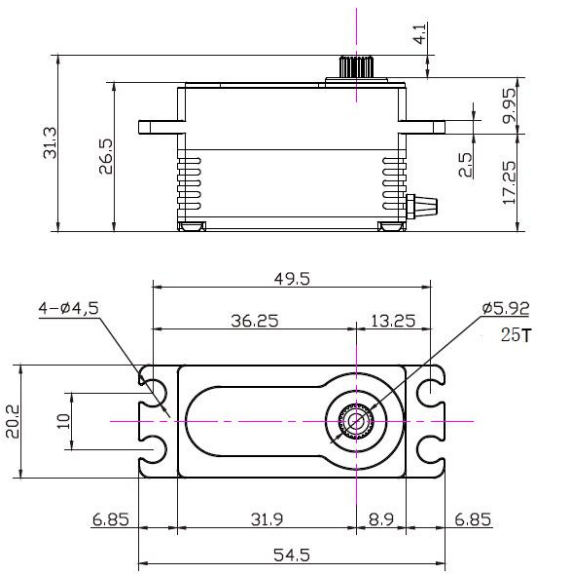

• Dimensions: 1.6 x .79 x 1.0 (LWH) 40.8x20.2x26.5mm
• Torque: 278oz @ 6v/ 299oz @7.4v/ 313oz @8.4v
• Speed: .07sec @6v/.06sec @7.4v/.057sec @8.4v
• Spline: 25T /
• Dead Band Width: 2¦Ìs

• 20kg @ 6v
• 21.5kg @ 7.4v
• 22.5kg @ 8.4kg

For programming, the USB Link is required.
